Gladen Mosconi SoundUp VW T6.1

Gladen Mosconi SoundUp package for Volkswagen Transporter T6.1 vans.

The package includes a special custom-fit subwoofer housing for the seat console, a 4-channel DSP amplifier, an appearance front speaker / tweeter system and 6.5″ rear speakers with pods (non-carpeted).

Product Information
The SoundUp package includes a special custom-fit subwoofer housing for the seat console (passenger), a 4-channel DSP amplifier, an appearance speaker system, a vehicle-specific plug-and-play cable set and rear speakers with pods.

After installation, DSP software can be used to load a pre-configured and vehicle-specific DSP setting. This can be readjusted to your personal music taste afterwards.

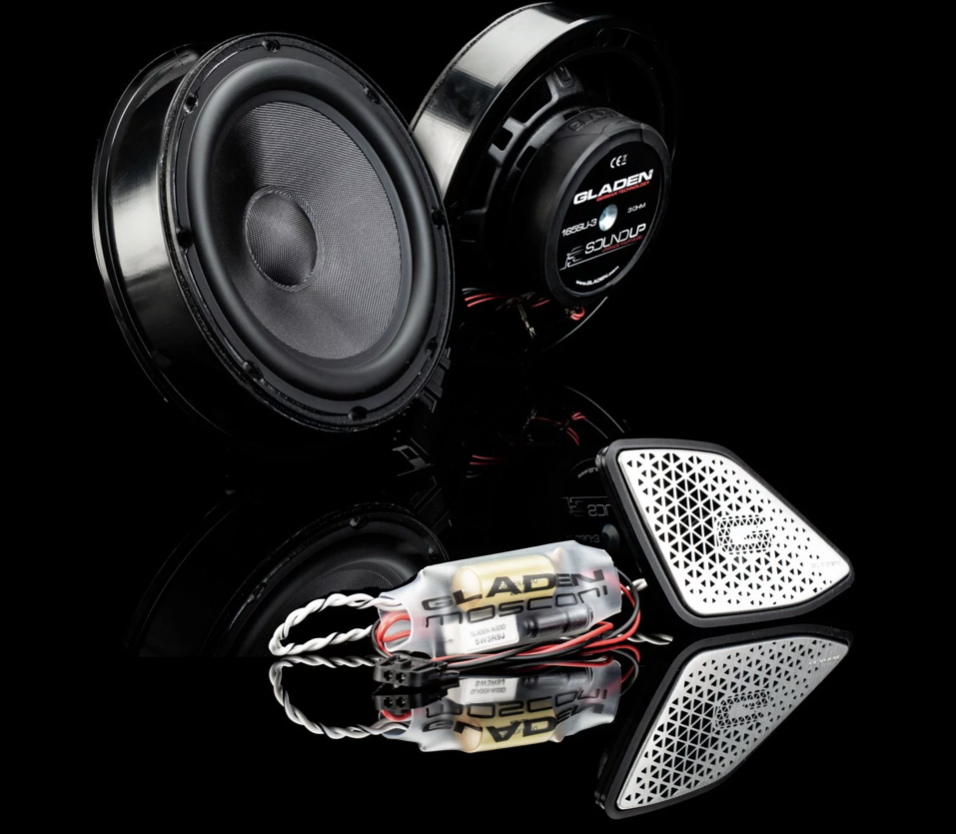

Plug and Play 2-Way System for VW T6.1
Utilizing the already immensely popular Gladen ONE-T6/T6.1-Appearance, it is designed for all those music lovers who want to combine perfect sound with a high-quality appearance in the vehicle. The individual speakers are specially designed for operation in the T6.1 and are supplied with vehicle-specific adaptations. The woofer for door installation receives a newly designed speaker mount, which ensures a secure and stable hold in the door. The new and specially designed Appearance tweeter mount with stainless steel grille ensures perfect alignment and sound dispersion.
To ensure a perfect installation, seals and small materials are included in the delivery and all connections are designed with original connections.

Specification:
Speakers:
200 mm speaker system (165mm T6.1)
2 x 150 / 100 Watt (130/90W T6.1)
3 Ohm impedance

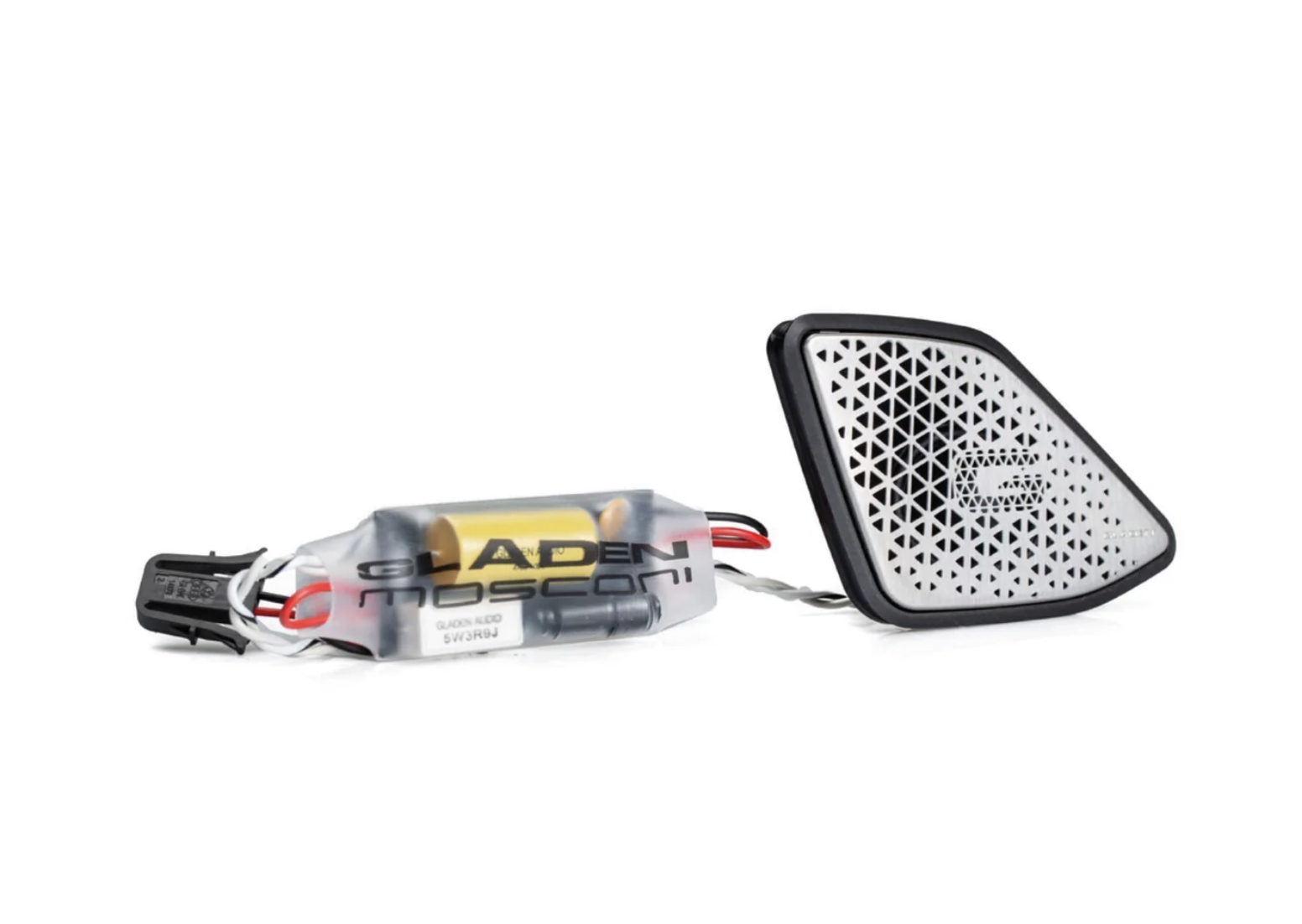

25 mm tweeter incl. crossover
Design tweeter housing

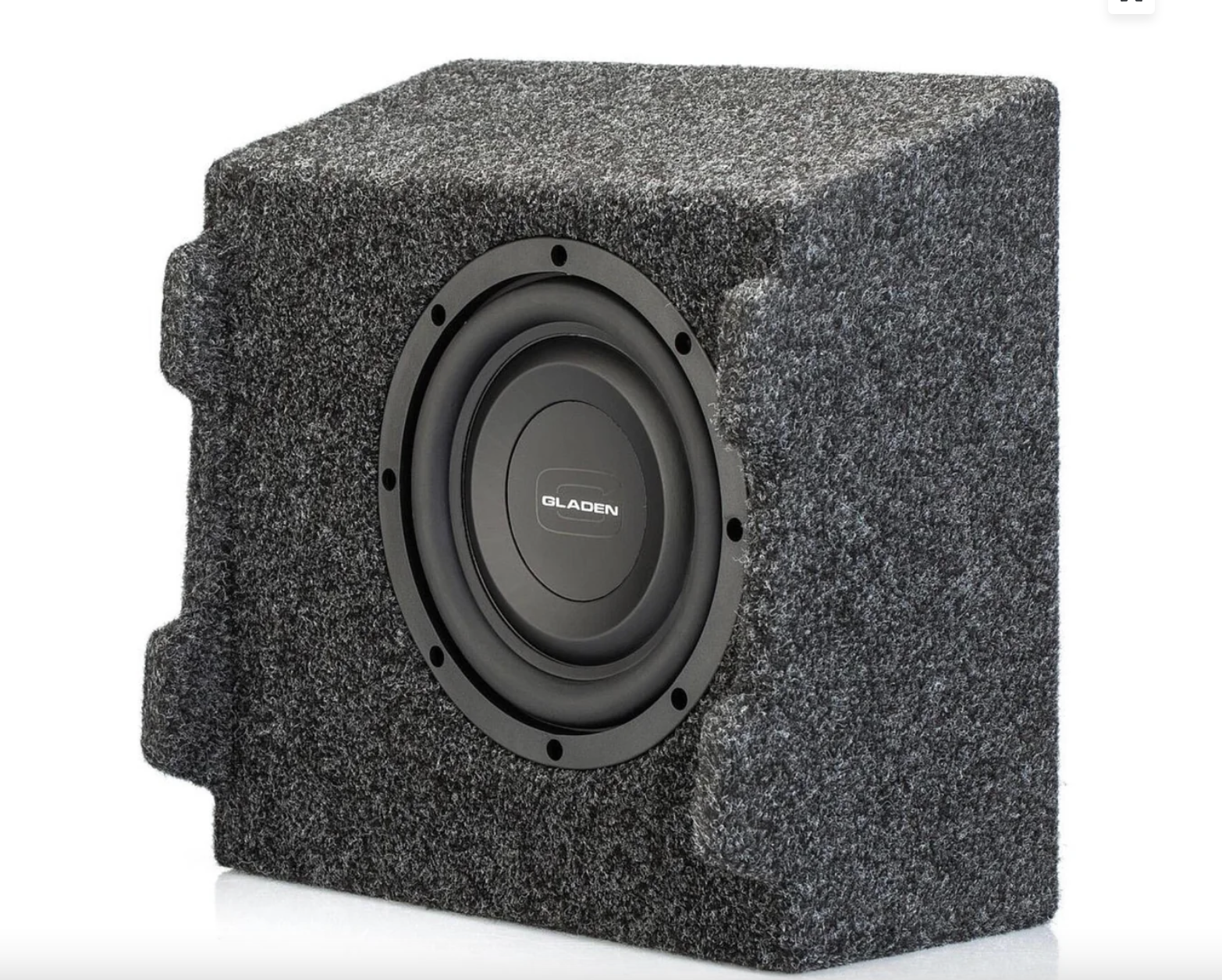

Subwoofer:
PP membrane
Paper dust cap
Rubber surround
Built for closed and bass reflex enclosures
8″ / 20 cm
Power handling: 450 / 225 Watts
2 x 2 Ohm impedance
Low installation depth

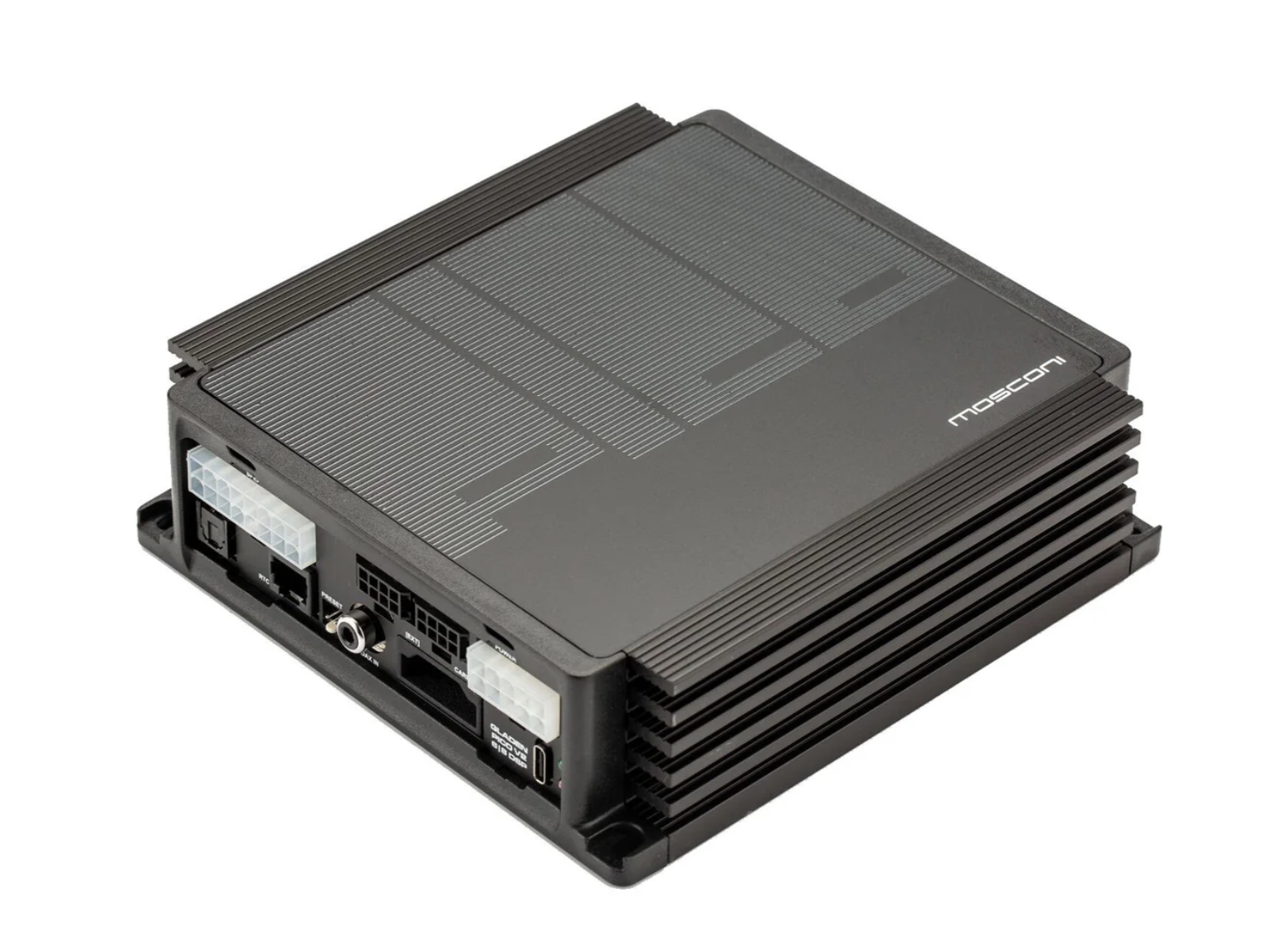

DSP Amplifier:
Perfect OEM integration:
Powerful DSP amplifier optimized for factory radio use. Six analogue inputs up to 30 V, flexible routing, 3 x input EQ and delay. With 4 x 90 Watts ideal for active and semi-active systems, as well as classic front + rear application. With two digital inputs (SP-Dif and BT+) and two processed line-outs ready for the future.

Gladen Audio RC165 Rear Speakers:
Gladen Audio RC165 6.5″ (165mm) 2-way system, features a concentric coaxial tweeter, which is characterized by excellent sound quality indicator.
– 165 mm coaxial
– 2 x 125/85 watts
– 3 ohms impedance
– 19 mm tissue tweeter
– GFP 431 fiber membrane
– Nomex spider
– internal tweeter lead

INPUT:
4 x analogue inputs balanced (high-level) up to 30 V
2 x analogue inputs switchable (high level / low level)
1 x digital input SP-Dif optical (8 kHz – 96 kHz sampling rate)
1 x Bluetooth port with SP-Dif – TTL (8 kHz – 96 kHz, e.g. for Mos_BTS Bluetooth streaming module)
Bluetooth extended digital audio port (BT+)
(flexible 8 kHz – 384 kHz synchronous digital input for audio sources with 2 – 16 channels, direct DSP access without jitter, e.g. for MOS BTS-LD4C BT streaming module or extended analogue inputs)

DSP:
912 MHz, 32-bit audio port, 64-bit core
Double Precision 56-bit filter calculation
6144 SIMD instructions per sample at 48 kHz
ASRCs from 1:8 up to 7.75:1 ratio and 139 dB DNR

CONTROL:
1 x remote connector (analogue, for RTC.2 Poti remote control)
1 x Bluetooth control port (connection MOS-BT3.0 (app control), RC-Can (CAN-Bus control), MOS_USB2.0 (Programming dongle)
1 x remote out, 1 x remote in, auto remote for high-level connection
Connections with MOLEX® plug contacts
Very small size with low heat generation, best suited for installation behind panels

SOFTWARE:
3 x 9 band parametric input EQ (de-equalizing)
6 x input delay 0 – 3 ms / 0.01 ms (de-delay)
10 x input level control digital (signal conditioning)
Flexible mixer for signal routing (Side separated, can sum and subtract, 10 inputs to 4 x 2 output groups)
6 x 30 band or 4 x 30 band + 2 x 15 band group EQ
(parametric, relative phase remains stable)
8 x 10 band output filters
Highpass/lowpass / high-shelf / low-shelf / notch / all pass 1st + 2nd order / speaker-EQ)
8 x speaker-delay 0 – 12ms, 0,02ms
8 x speaker phase switch
TECHNICAL DATA MOSCONI PICO 6|8 DSP v2
OUTPUT POWER/OUTPUT SIDE:
Output power RMS @ 4Ω:
4 x 90 Watts
Output power RMS @ 2Ω:
4 x 115 Watts
Output power RMS @ 4Ω:
4 x 45 Watts + 1 x 210 Watts (bridged channel 5 + 6)
Output power RMS @ 4Ω:
2 x 230 Watts (bridged)
Line Out:
4 x 2 Vrms Line Out
SPECIFICATIONS:
Input voltage:
0.3 – 15 V
Overall efficiency:
> 80 %
Auto-On (only High Level):
Off – BTL
Dimensions:
150 x 133 x 46 mm
Weight:
1100 Gramm
