12 V 4-way Häfele Connect Mesh Eco + Remote

Häfele 12V monochrome 4-way Connect Mesh Eco distributor and remote controller with 36w power rating.

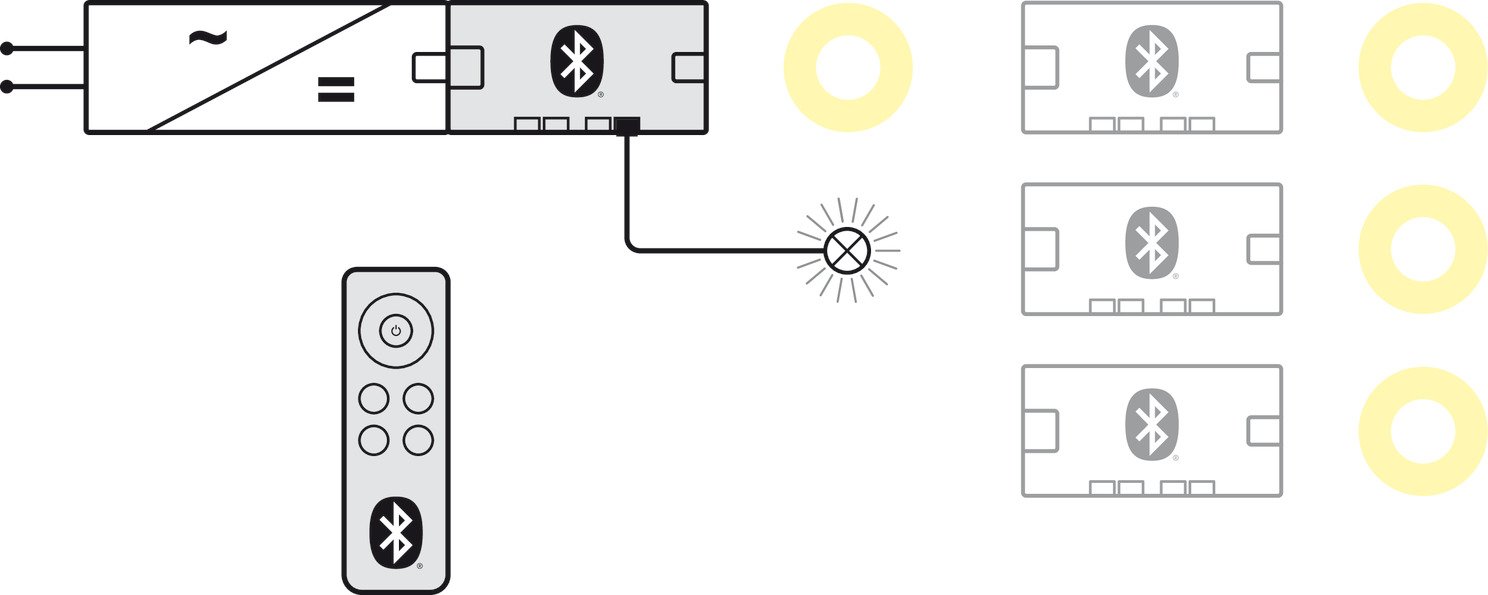

The remote control simultaneously controls all output ports of the distributors of a network (on/off, dimming level). The keys 1–4 are used for storing and calling up scenes.

Technical details:

4-way distributor in a set with the Häfele Connect Mesh Eco remote control

Low voltage plug: Loox5 2-pin 12 V
Input ports: 1 x plug, Loox5 2-pin 12 V box to box
Output ports: 1 x socket, Loox5 2-pin 12 V box to box
Connected output ports: 4 x sockets, Loox5 2-pin 12 V
Memory function: No
Power rating: 36.00 W
Current carrying capacity: 3.00 A
Colour system: monochrome
Area of application: For switching on/off and dimming (0-100%)

Suitable for monochrome LED lights
Material: Plastic
Colour/finish: black
Dimensions: Distributor: 105 x 50 x 16 mm, Remote control: 125 x 40 x 12 mm

Dim. (L x W x H) 105 x 50 x 16 mm
Max. number of distributors per network: 4.00
Max. distance within the network: 5.00 m
Standby power consumption: 0.50 W

Art. no. 850.00.981

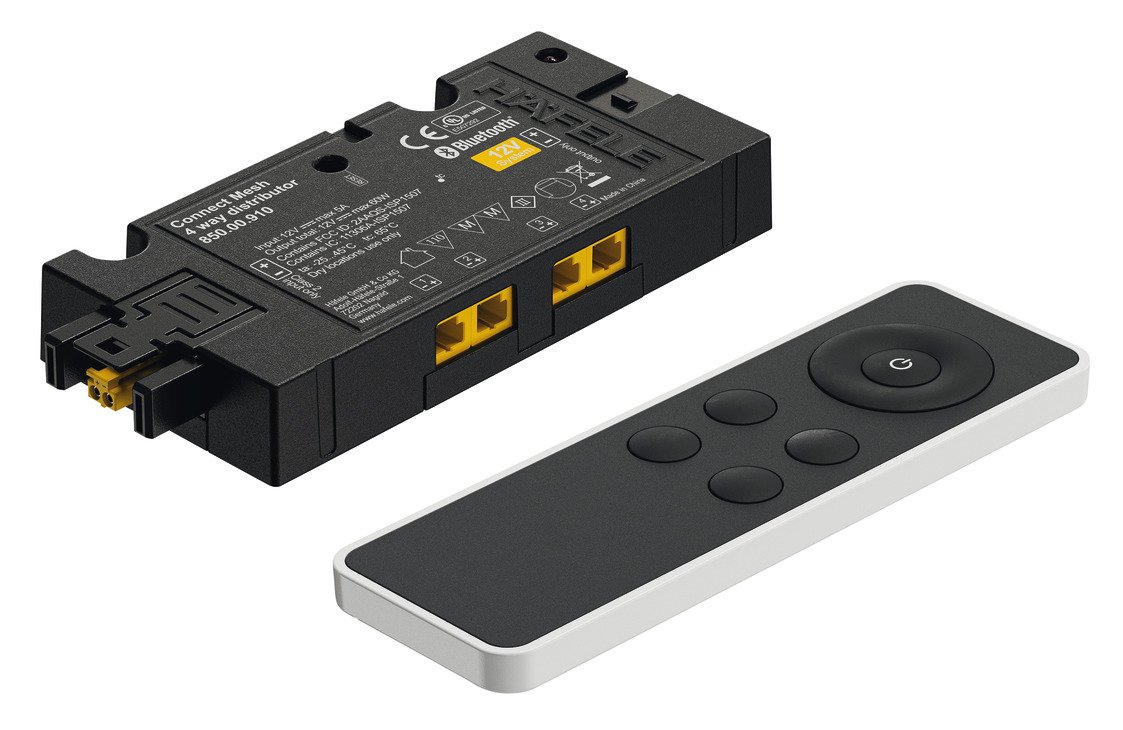

Supplied with:
1x 4-Way Distributor, monochrome
1x Remote control
